9 Design Views

Capture has three design views, the Alpha, Beta and Gamma views. They all have the same capabilities and configuration options. Some of these are available from the view menu, some are available from the Views category of the Design tab.

9.2 Selection

Objects in a view can be selected by clicking on them. Use the Shift key to add objects to the selection and the Ctrl key (on Windows) or Cmd key (on Mac) to toggle individual object selection.

Click and drag a rectangle around multiple objects to select more than one object at once. If you drag from the left to the right, objects fully within the rectangle are selected. If you drag from the right to the left, objects fully or just partially within the rectangle are selected.

When objects have been grouped, clicking on any of the objects in the group will select the entire group. Use the Shift key to add the group to the selection and the Ctrl key (on Windows) or Cmd key (on Mac) to toggle the selection of individual objects in the group.

You can select individual objects in a group by double clicking on them. If a group contains groups, each double click drills down one “level” into the group. The same type of behaviour applies to implicit groups - such as objects and their annotations in plot mode and fixtures with scrollers and yokes attached.

9.3 Manipulation

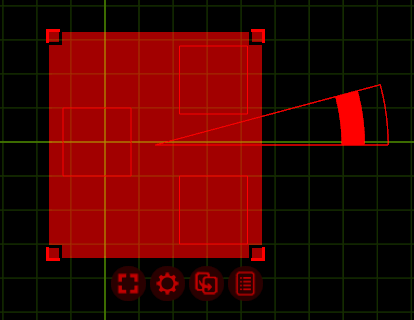

When one or more objects are selected, a red region outlines their extents.


Clicking and dragging anywhere inside the region moves the objects. Hold the Shift key to restrict the movement orthogonally.

While moving objects they may snap to the outlines of other objects. Hold the Ctrl key (on Windows) or Cmd key (on Mac) to disable snapping.

If multiple objects are selected, the corners of the outline region can be grabbed and moved. This causes the objects to be redistributed accordingly.

In addition to the rectangular red region, a red triangle may appear. This is a rotation tool. Click and drag its innermost segment to relocate it. Click and drag in one of the outermost segments to rotate the selected object(s) around the edge of the triangle. The inner region rotates the objects as a group while the outer region rotates the objects individually. Hold Shift to snap the rotation to steps of 5 degrees (configurable in the Options).

Below the red region four to five buttons are situated. The first two buttons display a menu with all selection and modification commands from the Edit menu.

If the view is in Live mode, a middle button (with a power symbol inside it) appears. This can be used to open or close the Control pane.

The second to last button (with an arrow inside) can be used to:

  • create a copy of the selected objects by drag and dropping them to any of the design views
  • import / create a copy of objects from another project by drag and dropping them from the Import Model window
  • drag and drop objects on DMX Movers and DMX Rotators to associate them
  • drag and drop objects on a group to add them to the group
  • drag fixtures to a DMX universe view to patch them

The last button (with a list inside) presents a popup window with details about the selected objects.

9.3.1 Plot Adjustments

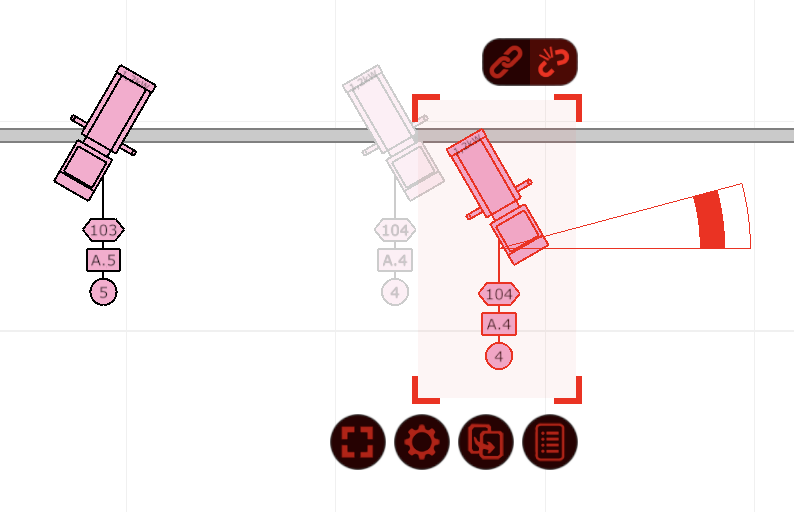

When in plot mode it is possible to adjust the location and rotation of an object in a way that only affects plots. This can be used to improve the readability of a crowded rig and to separate stacked fixtures.


Click on the Broken Link button to enable making and editing plot adjustments. Click on the Whole Link button to return to normal object manipulation. The Enable Plot Adjustments command can also be used to control whether making and editing plot adjustments is enabled.

When a plot adjustment has been made for an object and it is selected, you can see its original location as a shadow. Use the Clear Plot Adjustments command to clear plot adjustments and restore the object’s physical location.

9.4 Control Pane

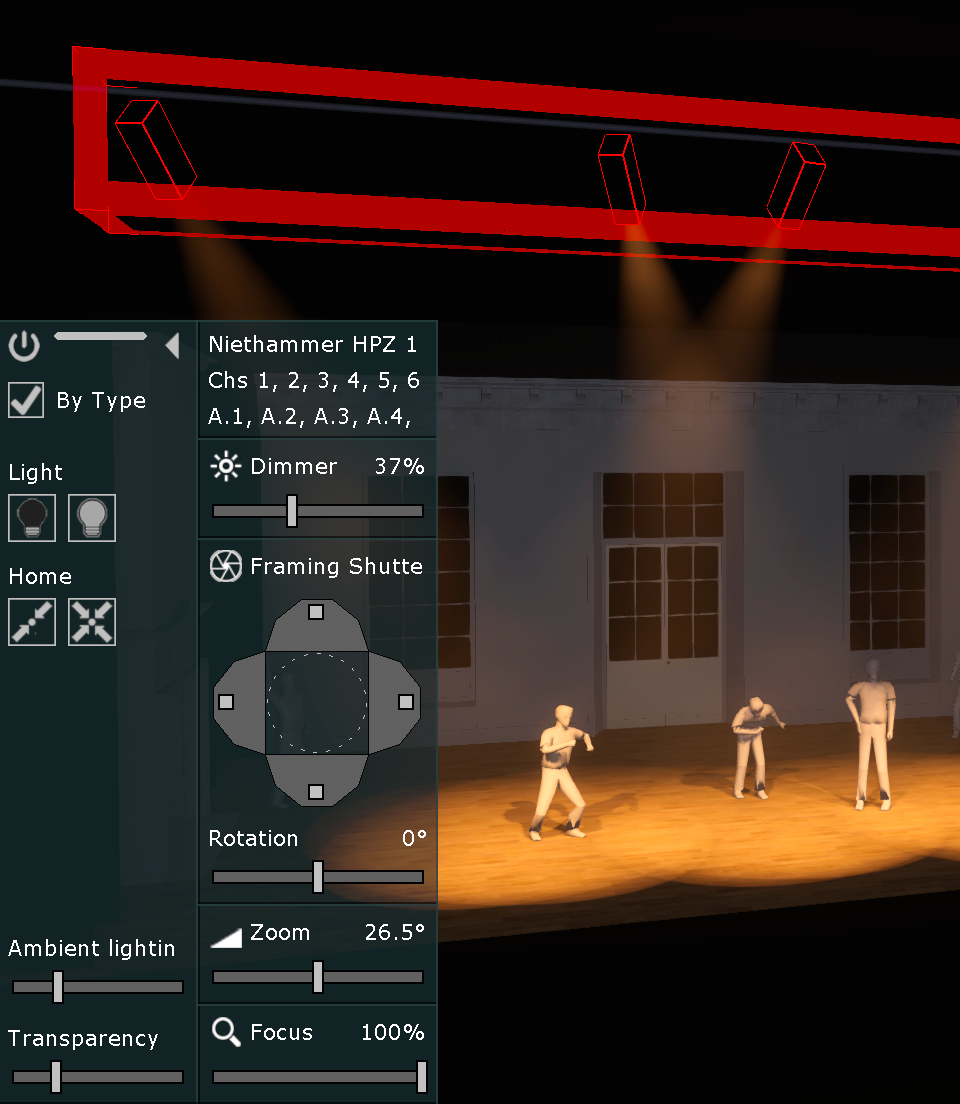

The control pane provides control of fixtures.


The leftmost pane is always present. Each selected type of fixture adds a control column to the right (unless the By Type option is unchecked, in which case each individual fixture adds a column).

At the top of the fixed pane are three controls; a power button that can be used to close the control pane, a resizing bar which can be clicked and dragged to resize the control pane and finally an arrow button that hides and reveals the control columns.

Under the Light label are two buttons to quickly turn on and off the selected fixtures.

Under the Home label are two buttons to home the selected fixtures. The first button homes all parameters except pan and tilt, the second button homes all parameters.

The ambient lighting slider provides quick access to the view’s ambient lighting property.

The transparency slider controls the transparency of the control pane’s background.

9.4.1 Parameter Control

Most parameters are controlled using click and drag of sliders. Hold the Shift key to make fine adjustments.

Zoom, DMX mover and DMX rotator parameters can be edited by numeric entry on the keyboard by clicking on the current value. This way a specific field angle or fly bar height can be entered.

Pan and tilt parameters can be fanned by holding the Ctrl key (on Windows) or Cmd key (on Mac). You can also hold the Alt key to apply an offset to rather than scale the fanning.

9.5 Focus Mode

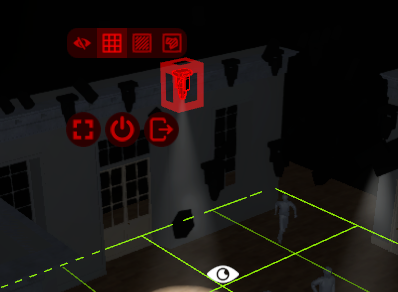

In focus mode, clicking on objects focuses all selected fixtures on the specified point rather than selecting the objects under the mouse. Clicking on fixtures to select them is still possible though, so that other fixtures can be focused without first exiting the focusing mode.


If focus planes are present in the project, an additional set of buttons are visible at the top right corner of the selection navigator when in focusing mode. These buttons toggle the rendering style of focus planes.

  • Invisible
  • Grid, useful as a guidance and alignment tool when focusing pools of light
  • Solid, useful to eliminate visually distracting materials
  • Heatmap, useful to assess illumination levels

For more information on focus planes, see the Focus Plane section.

To exit the focusing mode, use the exit button at the bottom right corner of the selection navigator.

9.6 Measure Mode

In measure mode the cursor is accompanied by a crosshair showing the the X, Y and Z location (as applicable) of the cursor.

Click anywhere to begin measuring a distance and click again on another location to complete it. Optionally hold the Shift key and click again to add more points.

When you start the next measurement, the previous will clear. You can also clear the current measurement using the Escape key.

When no measurement is present you can exit measure mode using the Escape key.

9.7 Polygon Editor

The polygon editor lets you edit the 2D polygon shape element of polygon forms. It is accessed by selecting a polygon shape and using the Model / Edit.. command from the Edit Menu.

The polygon editor automatically aligns the view’s camera to match the orientation of the polygon shape. Navigate the editor using the middle mouse button (or Alt key combined with the left mouse button), scroll wheel / surface and corresponding buttons at the bottom right corner of the design view. Exit the polygon editor using the exit button at the bottom right corner.

To move points, click on them and drag them. To add points, hold the Ctrl key (on Windows) or Cmd key (on Mac) and click on an edge. To remove a point, click on it to select it and then use the Delete command.

When hovering a point its X and Y coordinates are shown next to it. Input new coordinates using the keyboard and the Enter key, toggle between editing the X and Y coordinates using the Tab key.

When hovering an edge its length is shown next to it. Enter a new length using the keyboard and the Enter key. When hovering the centre of the edge both endpoints will be adjusted to the new length, when hovering closer to either of the ends of the edge only the endpoint on that side will be adjusted.

You can exit the polygon editor using the Escape key.
