4 Edit Menu

4.1 Undo

This command undoes the last modification.

4.2 Redo

This command redoes a previously undone modification.

4.3 Duplicate

This command allows you to create one or more copies of the object or group of objects you have selected. The offset values are applied incrementally which means that if you specify two copies with an offset of 2m, the first copy will be created 2m away from the original and the second copy will be created 4m away from the original etc. Note that the rotation angle takes the placement of the rotation anchor into account.

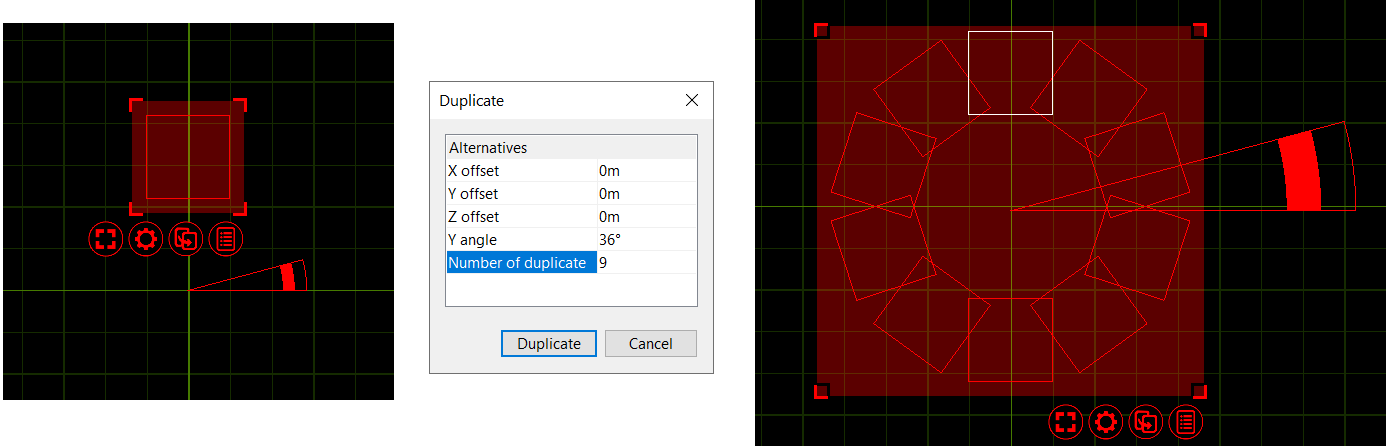

CloneCircleCommandFor instance you can create a circle of ten boxes by selecting a box, moving the rotation anchor of the circle, choosing the Duplicate command, entering an angle of 36 degrees (a full circle of 360 degrees split in ten objects) and 9 copies (since one box already exists, the result will be 10 boxes).

4.4 Replace

To replace fixtures in your design, first select the fixtures you wish to replace, then activate the replace mode using this command, locate the fixture type you wish to use instead in the Library tab and finally drag it onto one of the selected fixtures.

This way all the selected fixtures are replaced for the new fixture type chosen. You can also drop the new fixture type onto any other fixture or replaceable object not selected, but this way you can only replace on fixture or object at a time.

4.5 Delete

This comand deletes the currently selected objects.

4.6 Group

This commands creates a group of the currently selected objects.

4.7 Break Group

This command breaks any currently selected groups without deleting their contents.

4.8 Transform

This command allows you to move or rotate by an exact distance or amount of degrees. Use the green navigator cube to guide you with the X, Y and Z directions in the current view. Note that the rotation angle takes the placement of the rotation anchor into account and always performs a Group rotation.

4.9 Align

This command allows you to select a group of objects and quickly align them a long a specific axis very quickly. Whatever align function is used is always relevant to the design view you are using it in. The options available are displayed to the right.

4.10 Spread Even

This command allows you to select a group of objects or fixtures and spread them evenly along a vertical or horizontal axis very quickly. It is extremely useful for making lines of objects very quickly.

4.11 Mirror

This command rearranges the selected objects in a mirror-like fashion. The mirroring direction is relative the currently focused design view. By default it mirrors around the centre point of the selected objects, but you can enter any coordinate desired.

By checking the Duplicate checkbox the selected objects are duplicated and the new objects are mirrored and finally left selected.

4.12 Clear Plot Adjustments

This command clears any plot adjustments made for the selected objects. This command is only available when plot adjustments are enabled.

4.13 Map Material

This command is used to enable the material mapping mode in which textured materials can be positioned / mapped onto objects.

MaterialMapping

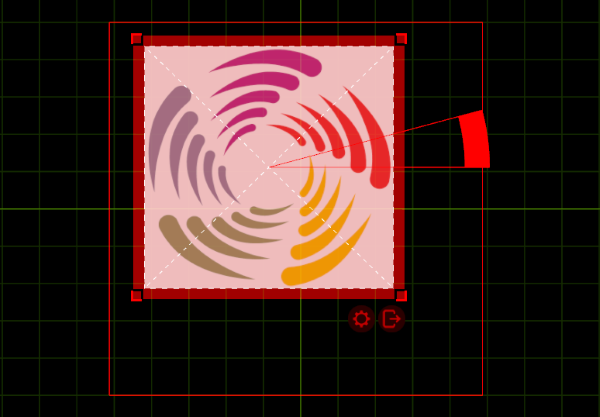

The texture of the material is outlined and crossed with dotted lines. Move and rotate the texture of the material using the selection navigator, as if moving and rotating any other object.

To exit the material mapping mode, use the exit button at the bottom right corner of the selection navigator.

4.13.1 Map to Extents

This command automatically adjusts the material mapping so that it exactly fills the extents of the currently selected objects. If mapping the materials of multiple objects at once this command also aligns the mapping of all materials.

4.13.2 Reset Mapping

This command resets the material mapping to its default state.

4.13.3 Select Region >

This command selects a previously defined mapping region. See Edit Regions.. on how to define mapping regions.

4.13.4 Clear Region

This command clears any selected mapping region.

4.13.5 Edit Regions..

This command opens the Mapping Regions window. In this window it is possible to define mapping subregions. This is useful when the texture of a material is divided into segments to be mapped onto separate objects.

Set the Resolution Width/Height to the resolution of the texture (or media). Use the X/Y Offset and Width/Height properties to define the subregion.

4.14 Model >

4.14.1 Hide Distracting Edges

This commands hides distracting polygon edges, ie polygon edges that lie on flat surfaces, leaving only polygon edges on corners. This reduces the visual clutter of imported objects. It can also have a slight positive effect on wireframe rendering performance.

4.14.2 Convert Lines to Pipes

This commands converts all lines to pipes. This is useful for converting line-based drawings of truss constructions to solid geometry as it could then be seen in Design views in Live mode.

The pipes created are merely hollow cylinders that do not assume any of the specialised functionality that come with actual trusses, such as snapping between trusses or fixture location association.

4.14.3 Edit..

Available when exactly one polygon form is selected, opens the Polygon Editor.

4.15 Sequential >

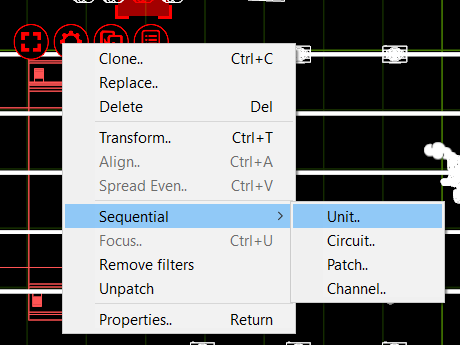

4.15.1 Sequential Unit

SequentialUnitCommand

SequentialUnitDialog

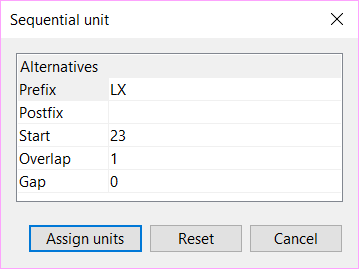

This command allows you to set the Unit property of the selected objects in a consecutive manner. You may specify a Prefix as well as a Postfix to the numbering. The Start property defines the first number of the range. The Overlap property allows you to create series such as 1, 1, 2, 2, 3, 3 and the Gap property allows you to create series such as 1, 3, 5, 7. Notice that if you select objects manually one by one, this defines the order for the numbering. However, if you select them by dragging the mouse over the objects, the order of the objects undefined.

4.15.2 Sequential Circuit

Sequential circuit essentially works just like sequential uniting – except that you assign circuit numbers to the Channel property of fixtures. You may specify a Prefix as well as a Postfix to the numbering.

4.15.3 Sequential Patch

This command allows you to sequentially patch fixtures. The order in which you select the fixtures will be the order they are applied to the patch. You may choose the universe and start address by entering the address as Universe.Address. For example, entering 2.1 would have the fixtures start at channel 1 on universe 2. You also have the option of leaving a gap between fixtures if you wish.

4.15.4 Sequential Channel

Sequential channel essentially works just like sequential uniting – except that you assign fixture numbers to the Channel property of fixtures. Since it is a number and not text, you are not allowed to specify a prefix or postfix.

4.16 Focus

This command enters the fixture focusing mode. In the focusing mode, clicking on objects focuses all selected fixtures on the specified point rather than selecting the objects under the mouse. Clicking on fixtures to select them is still possible though, so that other fixtures can be focused without first exiting the focusing mode.

FocusingMode

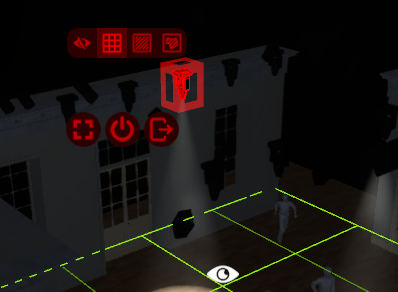

If focus planes are present in the project, an additional set of buttons are visible at the top right corner of the selection navigator when in focusing mode. These buttons toggle the rendering style of focus planes.

  • Invisible
  • Grid, useful as a guidance and alignment tool when focusing pools of light
  • Solid, useful to eliminate visually distracting materials
  • Heatmap, useful to assess illumination levels

For more information on focus planes, see the Focus Plane section.

To exit the focusing mode, use the exit button at the bottom right corner of the selection navigator.

4.17 Remove Filters/Gobos

This command removes any filters or gobos from the selected fixture(s).

4.18 Unpatch

This command unpatches the selected fixture(s).

4.19 Select All >

4.19.1 By layer

This commands select all other objects in the same layer(s) as the already selected object(s).

4.19.2 By drawing block name

This command selects all other imported objects with the same drawing block name as the already selected imported object(s).

4.19.3 Motion controlled

This command selects all objects that are motion controlled by the already selected object(s).

4.19.4 Connected truss

This command selects all other trusses connected to the already selected truss(es).

4.19.5 Fixtures on truss

This command selects all fixtures close enough to the selected truss(es).

4.19.6 By fixture type

This command selects all fixtures of the same type(s) as the already selected fixture(s).

4.19.6.1 By fixture location

This command selects all fixtures at the same location(s) as the already selected fixture(s). If no location information is available for a fixture, the nearest truss is used as its location.

4.19.7 By fixture group

This command selects all fixtures that are part of the same fixture group(s) as the already selected fixture(s).

4.20 Select Only >

4.20.1 Annotations

This command deselects everything except the annotations of the selected object(s).

4.21 Deselect

This command deselects all objects.

4.22 Properties

This command is a shortcut to the Selected Items category of the Design tab.
